MicroFiberDetect
Micro Fiber Detection in Sludge

Detect, count & analyze microfibres in wastewater sludge — fast.

MicroFiberDetect is a desktop application powered by deep learning (Mask R‑CNN) that detects microfibres in microscope images, estimates their length via skeletonization, and derives dominant colour using clustering. Built for environmental researchers and lab practitioners.

⬇ Download for Windows ⚙️ Install from Source 📚 Table of Contents

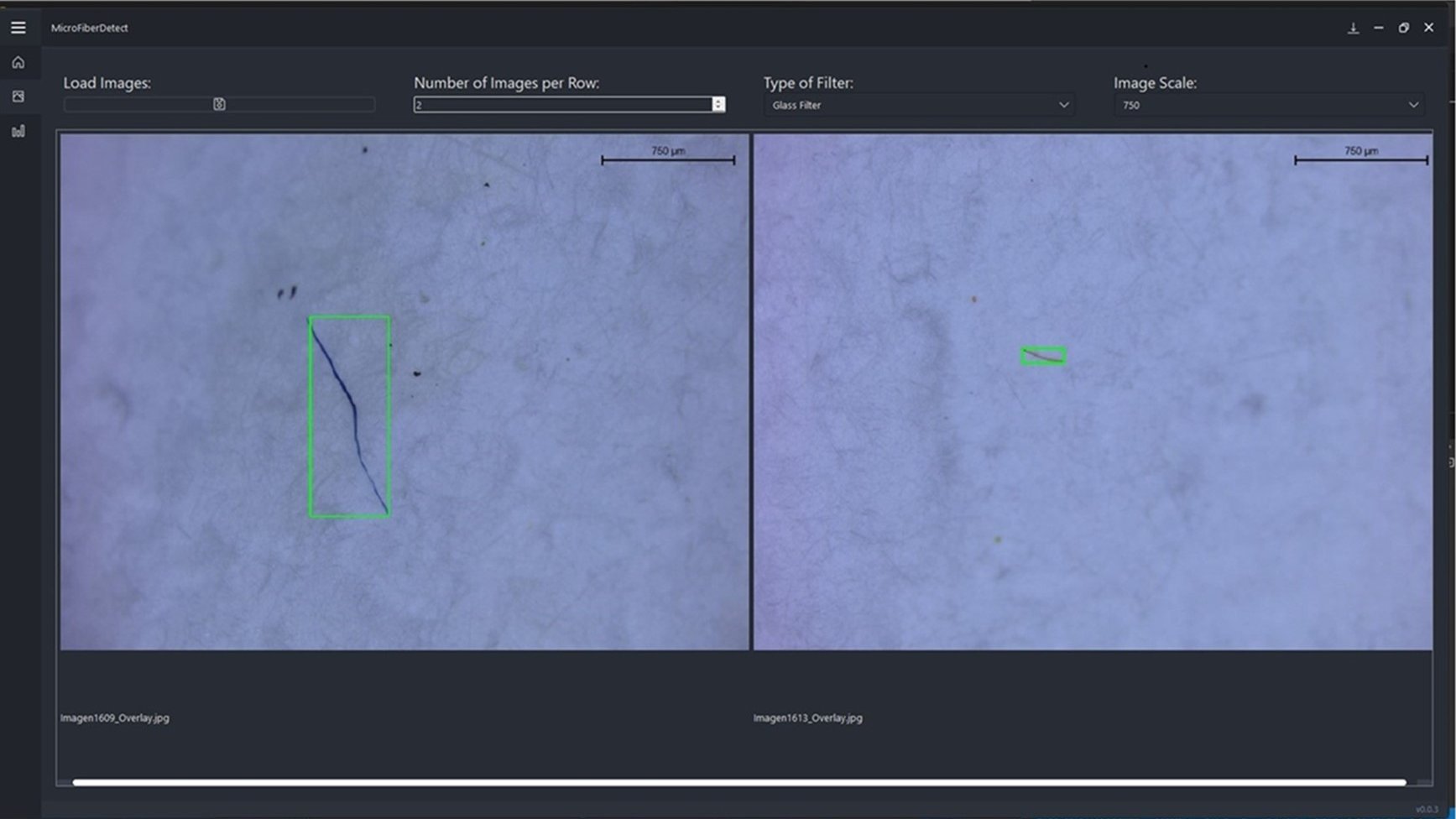

Detected fibres with bounding boxes
Colour clustering result
Length estimation via skeletonization

Table of Contents

Project Overview Repository Structure Installation Usage Features Contributing License

Project Description

This project contains an application designed to detect microfibres in sludge. It uses a fine‑tuned Mask R‑CNN for instance segmentation, k‑means clustering in HSL space for colour estimation, and skeletonized masks for length measurement.

Python PyQt6 / PySide6 OpenCV Torch / Torchvision NumPy / scikit-image CUDA (optional)

Quick Links

Repository Structure

Utils/
images/                # Contains all images used in the app
models/                # TorchScript files for both CA and Glass models
modules/               # Core code modules
test_data/             # Sample images extracted from glass filter
themes/                # App stylesheet
widgets/               # Reusable UI widgets
main.py                # App entrypoint
main.ui                # Qt Designer UI file

Installation

Prerequisites

  • Python 3
  • OpenCV
  • PySide6 / PyQt6
  • pyinstaller (for building executables)
  • torch & torchvision
  • numpy
  • scikit-image

Run from Source

  1. Install prerequisites (e.g., pip install -r requirements.txt).
  2. Launch the app with python main.py.

Note: ensure model files are present in models/.

Windows Build

Download the packaged app:

Download ZIP

Windows Defender may warn you. Click More info → Run anyway.

Usage

  1. Choose the correct model for your filter type: Glass or Cellulose Acetate (CA).
  2. Set the scale to match your microscope magnification.
  3. Load images or a folder of samples; processing progress is displayed.

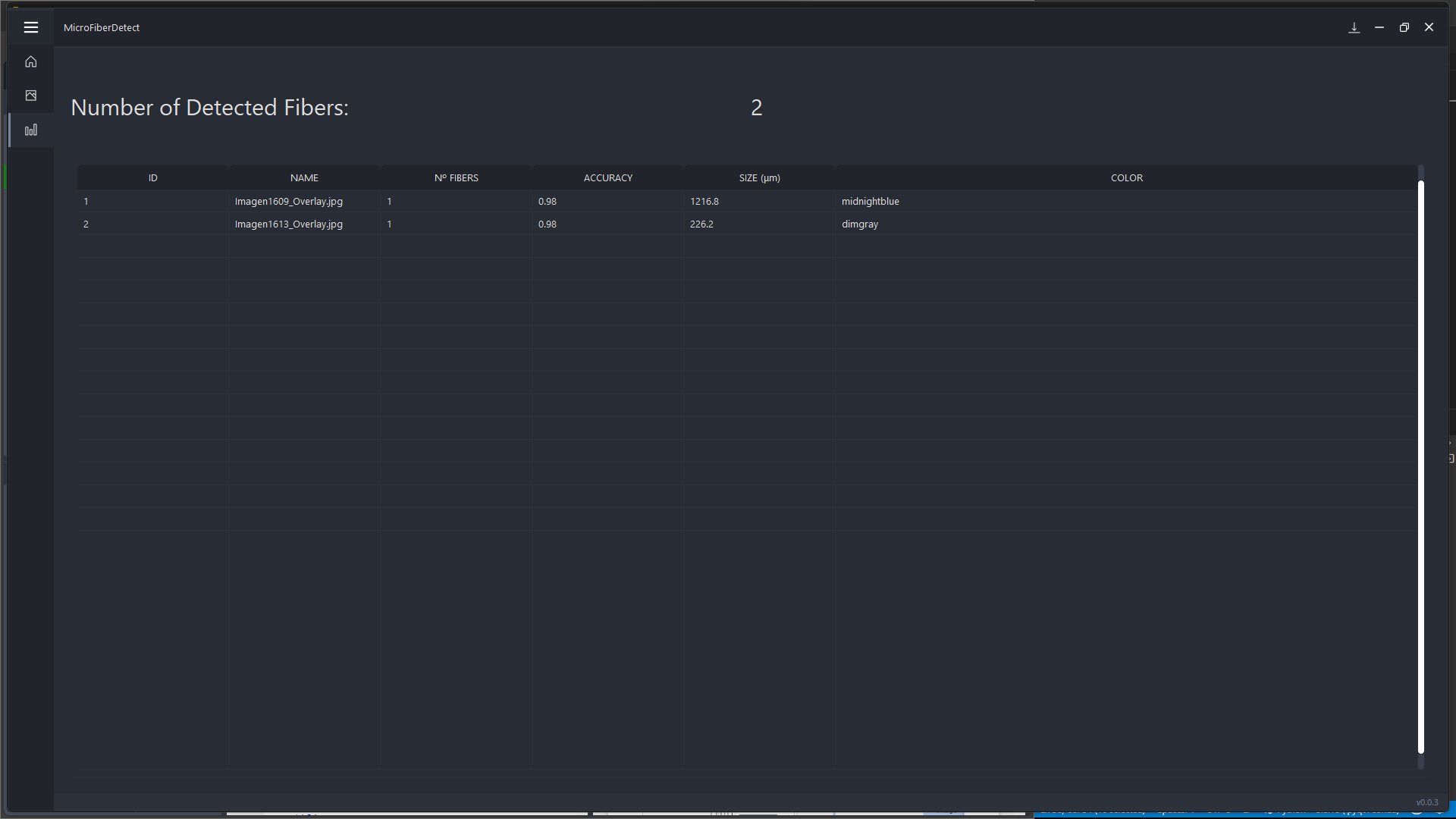

  4. Review per‑image results: fibre count, confidence, colour and length (μm).
  5. Export the results table to CSV and save images with overlayed bounding boxes.

Features

✔ Implemented

Windows build
CA & Glass filter detection models
Image processing pipeline
Progress bar for batch processing
Overlay bounding boxes on detected fibres
Total & per‑image fibre count
Length measurement at defined scale
Dominant colour via K‑means clustering
Export table data (CSV) & images with overlays

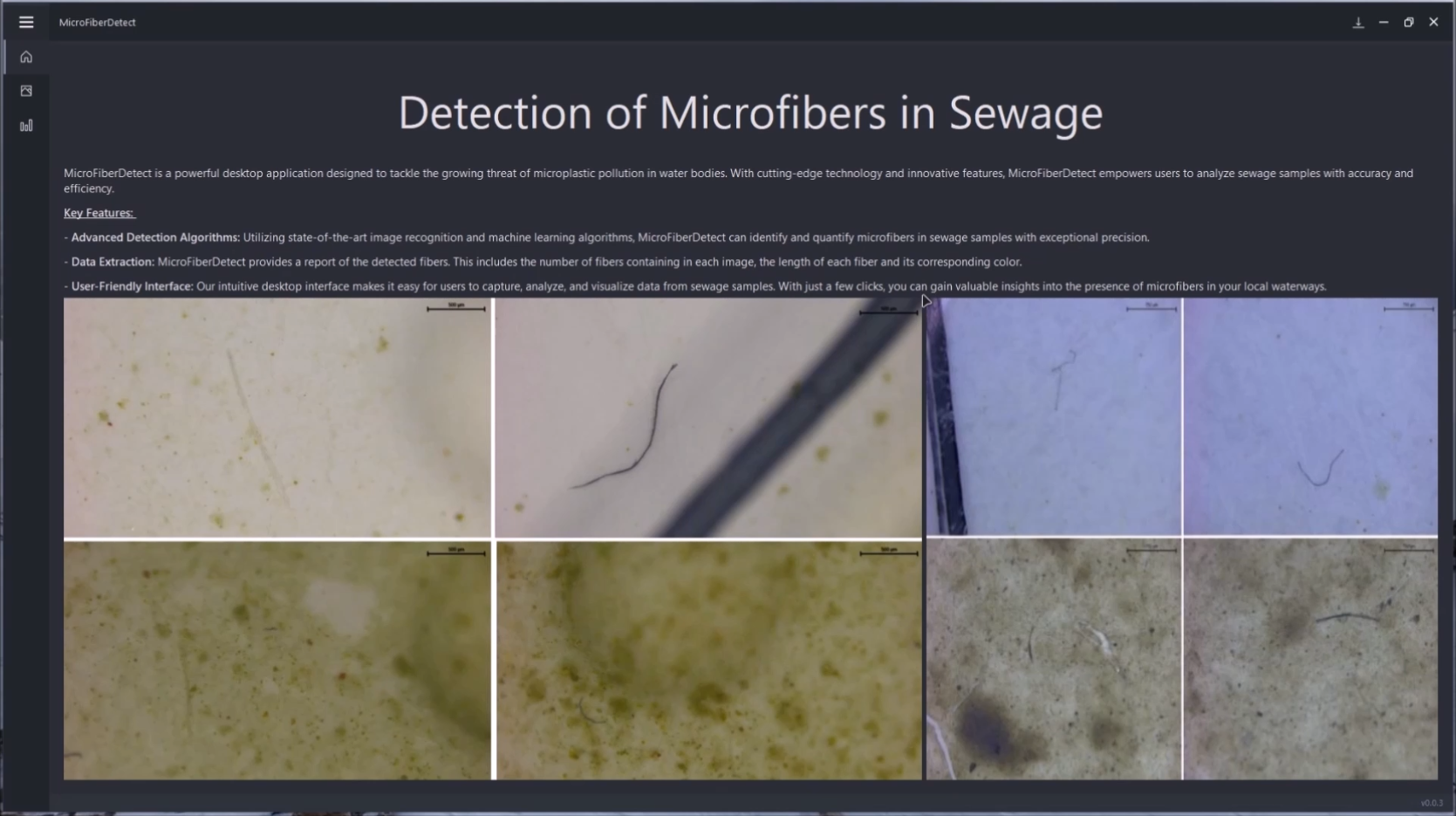

Home page explanation of app
CUDA support

❌ Planned

Linux build
Mac build
Export images at original resolution
Toggle segmentation / bounding boxes

Paper

Learn about the datasets (Glass & CA), model training, colour extraction, and length estimation in the accompanying paper.

MicroFiberDetect: An Application for the Detection of Microfibres in Wastewater Sludge based on CNNs
Felix Marti‑Perez, Ana Domínguez‑Rodríguez, Cèsar Ferri, Carlos Monserrat — 2025
📄 Read PDF Back to Overview

Contributing

If you'd like to contribute, please fork the repository and use a feature branch. Pull requests are warmly welcome.
